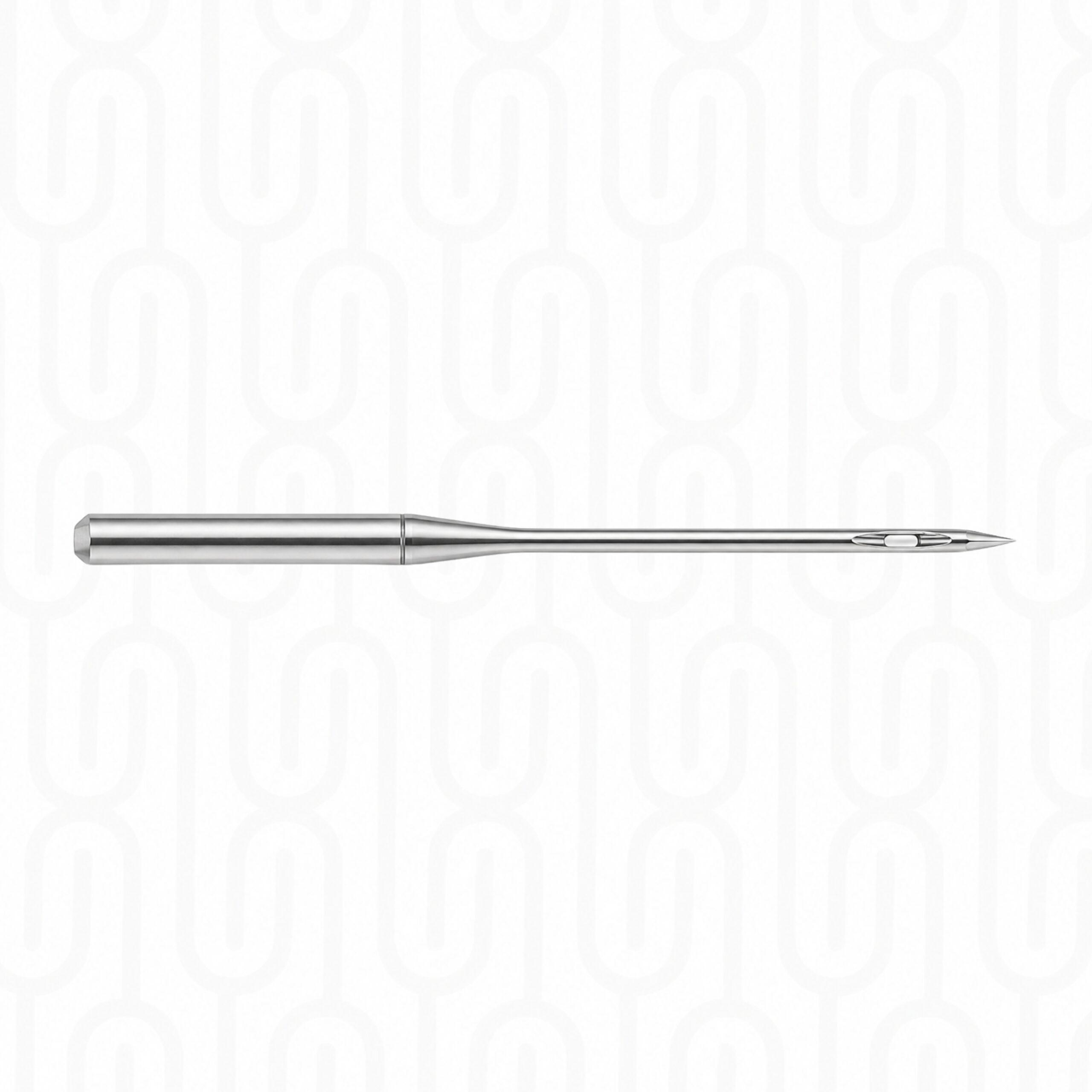

DAX1 Lockstitch Needle
The DAX1 Lockstitch Needle is a replaceable machine needle that carries the upper thread through the material during lockstitch sewing. Confirm the DAX1 needle system, required size, point style and dimensions against the machine specification before ordering.
Machine Parts
DAX1 Lockstitch Needle
This lockstitch Needle is a replaceable sewing-machine needle fitted in the needle bar. It carries the upper thread through the material and works with the machine’s stitch-forming system to create each stitch, making its condition important for reliable sewing.
Purpose and Benefits
Why This Machine Part Matters
The needle repeatedly penetrates the material and presents the thread loop to the machine’s hook or looper. A bent, blunt, damaged or incorrectly fitted needle can contribute to skipped stitches, thread breakage, material damage and inconsistent stitch formation.
Thread Delivery
Carries the upper thread through the material during each stitch cycle.
Stitch Formation
Works with the hook or looper so the stitch-forming sequence can take place correctly.
Controlled Penetration
Supports clean, controlled entry through the material when the correct needle is selected and fitted.
Routine Service Item
Can be replaced when worn or damaged to help restore dependable sewing performance.
Replacement and Compatibility Guidance
When to Replace and What to Consider
Signs of Wear
Visible wear, damage, unusual movement or deterioration may indicate that the component requires attention.
Parts Are Not Always Interchangeable
Parts that appear similar may differ in fit, mounting arrangement or operating function.
Confirm Compatibility
Provide complete machine information and photographs so the required part can be checked before ordering.
Professional Installation
Installation or adjustment by a qualified sewing-machine technician may be required.
Compatibility must be confirmed before ordering to ensure the replacement part is suitable for the machine.
Parts Enquiry and Ordering
Send Us the Right Information
To help our parts team identify the correct replacement, provide the following information when requesting a quote.
Machine Details
Provide the machine brand and complete model information.
Existing Part
Send clear photographs of the original or damaged component.
Identification Plate
Include a clear photograph of the machine identification plate.
Required Quantity
Let us know how many replacement components are required.
| Part Type | Sewing Needle |
|---|---|
| Part Code | DAX1 |
| Alternative Part Numbers | 88X1, SY1315 |
| Compatible Machine Brands | Not specified in the source catalogue; confirm from the machine and original part. |
| Compatible Machines / Families | Needle system DAX1; exact machine model must be confirmed |
| Part Function | This needle carries the upper thread through the material during lockstitch sewing. |
| Construction / Material | Not specified in source catalogue |
| Installation / Fitment | Consumable needle system; verify system, size, point and shank dimensions before fitting |
| Compatibility Confirmation | Required by needle system, size, point and dimensions |
| Needle Point | R |
| Needle Sizes | 7-22 (catalogue range) |
| Dimensions | A 1.62 mm; D 29.60 mm; N 14.50 mm |
| Main Application | Lockstitch sewing |
