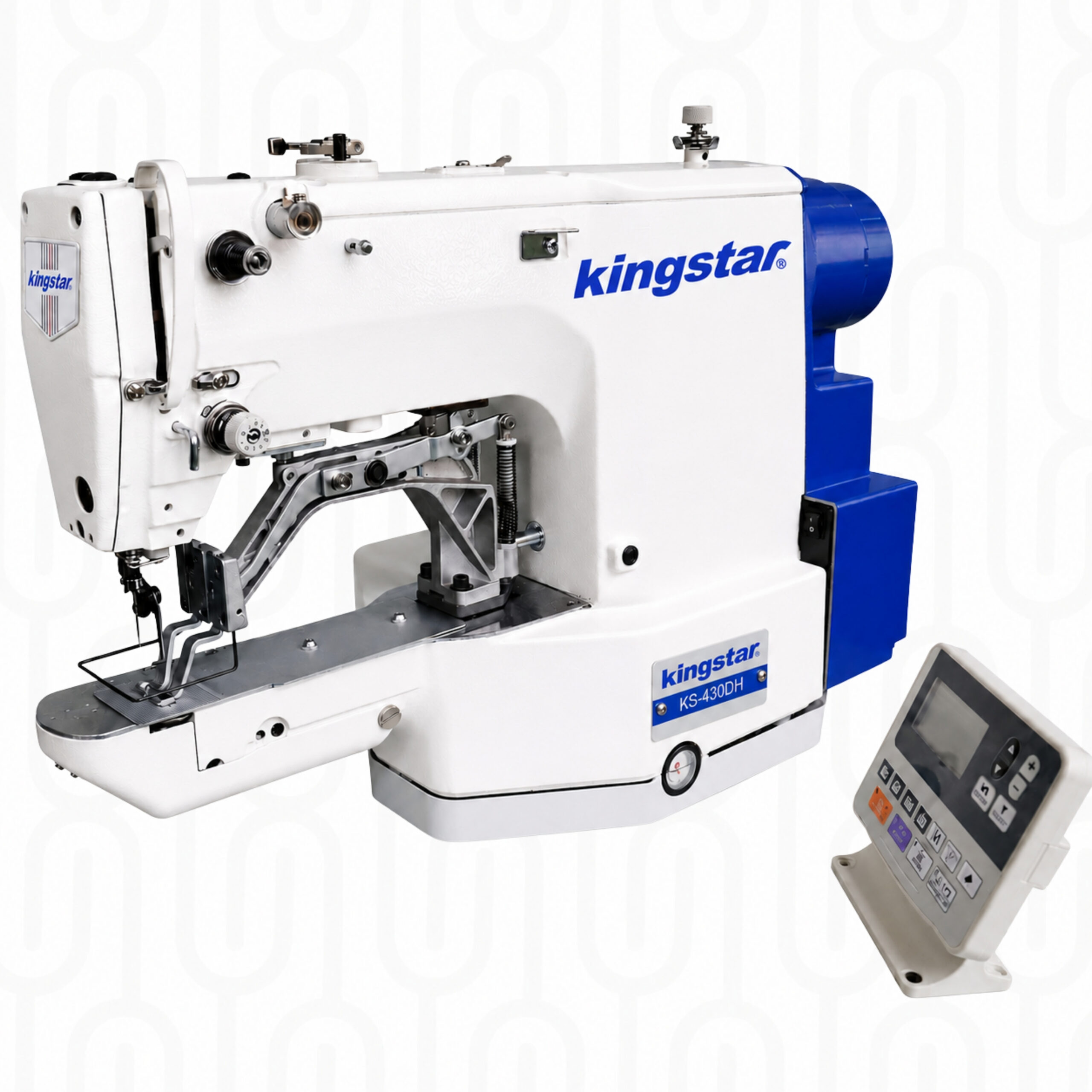

Kingstar KS-430DH Computerised Direct-Drive Vertical Bartacking Machine
The Kingstar KS-430DH is a high-speed computerised bartacking machine designed to produce strong, consistent reinforcement stitching at garment and product stress points. Its electronically controlled work clamp moves the material through programmed sewing patterns, allowing the machine to create repeatable vertical bartacks, straight bartacks, box and cross reinforcements and other compact lockstitch patterns. A direct-drive motor, programmable control panel, automatic thread trimming and automatic clamp lifting help reduce operator handling and improve production consistency.
Kingstar KS-430DH Computerised Direct-Drive Vertical Bartacking Machine
The Kingstar KS-430DH is an industrial bartacking machine that automatically produces compact reinforcement patterns.
Up to approximately 3,000 SPM
Computerised Bartacking Machine
Lockstitch
What You Can Sew
Ready to Order?
Contact us for pricing, configuration options and delivery. We will help you choose the right setup for your workshop.
| Brand | Kingstar |
|---|---|
| Model | KS-430DH |
| Machine Type | Computerised Bartacking Machine |
| Application Level | Industrial |
| Needle Configuration | Single Needle |
| Thread Configuration | Two Thread |
| Stitch Type | Lockstitch |
| Stitch Class | ISO 301 |
| Feed Type | Electronic X-Y Intermittent Feed |
| Sewing Field | Up to 40 x 30 mm |
| Sewing Speed | 000 SPM, Up to approximately 3 |
| Work-Clamp Lift | Up to approximately 17 mm |
| Needle Type | DPx5 or DPx17 |
| Hook Type | Standard Oscillating/Shuttle Hook |
| Motor Option | Built-in Direct Drive |
| Motor Power | 550W |
