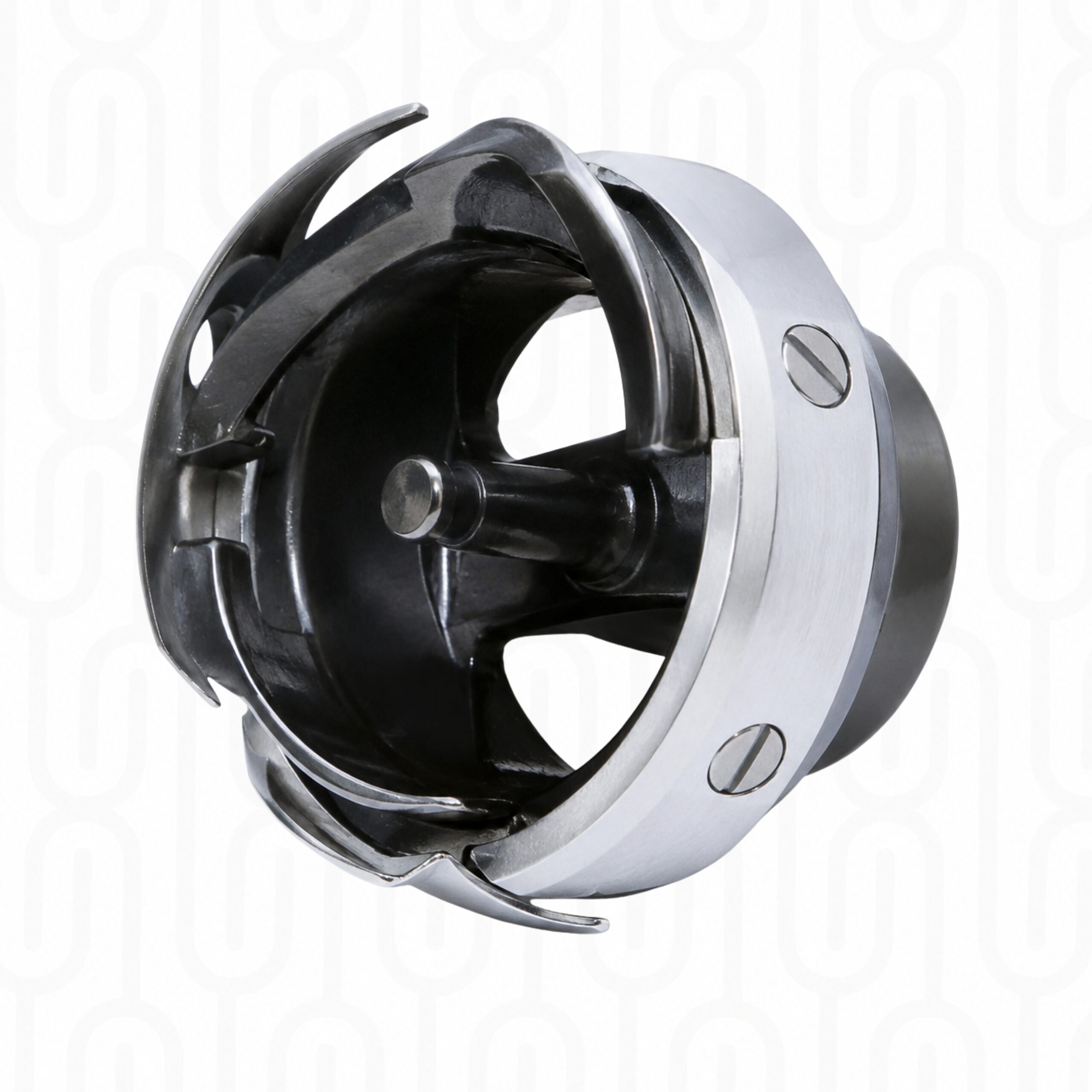

A11 DSH-BTR Micro-Oil Rotary Hook
The A11 DSH-BTR Micro-Oil Rotary Hook is an industrial sewing-machine rotary-hook component intended for compatible equipment. It is suitable for replacement or servicing where the existing component matches the required machine configuration. Confirm compatibility before ordering.
A11 DSH-BTR Micro-Oil Rotary Hook
The A11 DSH-BTR rotary hook is intended for compatible industrial lockstitch machines using the applicable micro-oil hook system. It works with the needle thread, bobbin and bobbin case to form each stitch while operating within the machine’s designated lubrication arrangement.
Purpose and Benefits
Why This Machine Part Matters
The rotary hook is central to the lockstitch-forming process. Its hook point catches the upper-thread loop as the needle rises, carries it around the bobbin assembly and enables the upper and lower threads to interlock.
Needle-Thread Capture
The hook point catches the upper-thread loop during the stitch-forming cycle.
Lockstitch Formation
Carries the upper thread around the bobbin assembly so it can interlock with the lower thread.
Micro-Oil Compatibility
Designed for the applicable reduced-lubrication hook arrangement used by compatible machines.
Serviceable Mechanism
Replacing a worn or damaged hook can help restore reliable thread handling and stitch formation.
Replacement and Compatibility Guidance
When to Replace and What to Consider
Signs of Wear
A worn hook point, burrs, scoring, rough movement, unusual noise, thread damage or recurring skipped stitches may require inspection.
Confirm the Exact Hook Type
Similar rotary hooks may differ in size, shaft fit, rotation, bobbin system, BTR configuration and lubrication requirements.
Confirm the Oil System
Verify that the machine uses the applicable micro-oil system and matching A11 DSH-BTR hook configuration.
Professional Setup
Installation, oil delivery, hook-to-needle clearance and timing should be checked by a qualified sewing-machine technician.
Compatibility, lubrication and timing must be confirmed before use to ensure the A11 DSH-BTR hook matches the machine and micro-oil system.
Parts Enquiry and Ordering
Send Us the Right Information
To help our parts team identify the correct A11 DSH-BTR micro-oil rotary hook, provide the following information when requesting a quote.
Machine Details
Provide the machine brand, complete model, subclass and computerized functions.
Existing Hook
Send clear photographs of the original rotary hook and all visible markings.
Lubrication and Bobbin System
Include photographs of the oil-delivery area, matching bobbin and bobbin case.
Required Quantity
Let us know how many replacement rotary hooks are required.
| Product Type | Micro-Oil Rotary Hook |
|---|---|
| Catalogue Designation | A11 / DSH-BTR |
| Machine Compatibility | A11 |
| Application | A11 lockstitch hook system |
