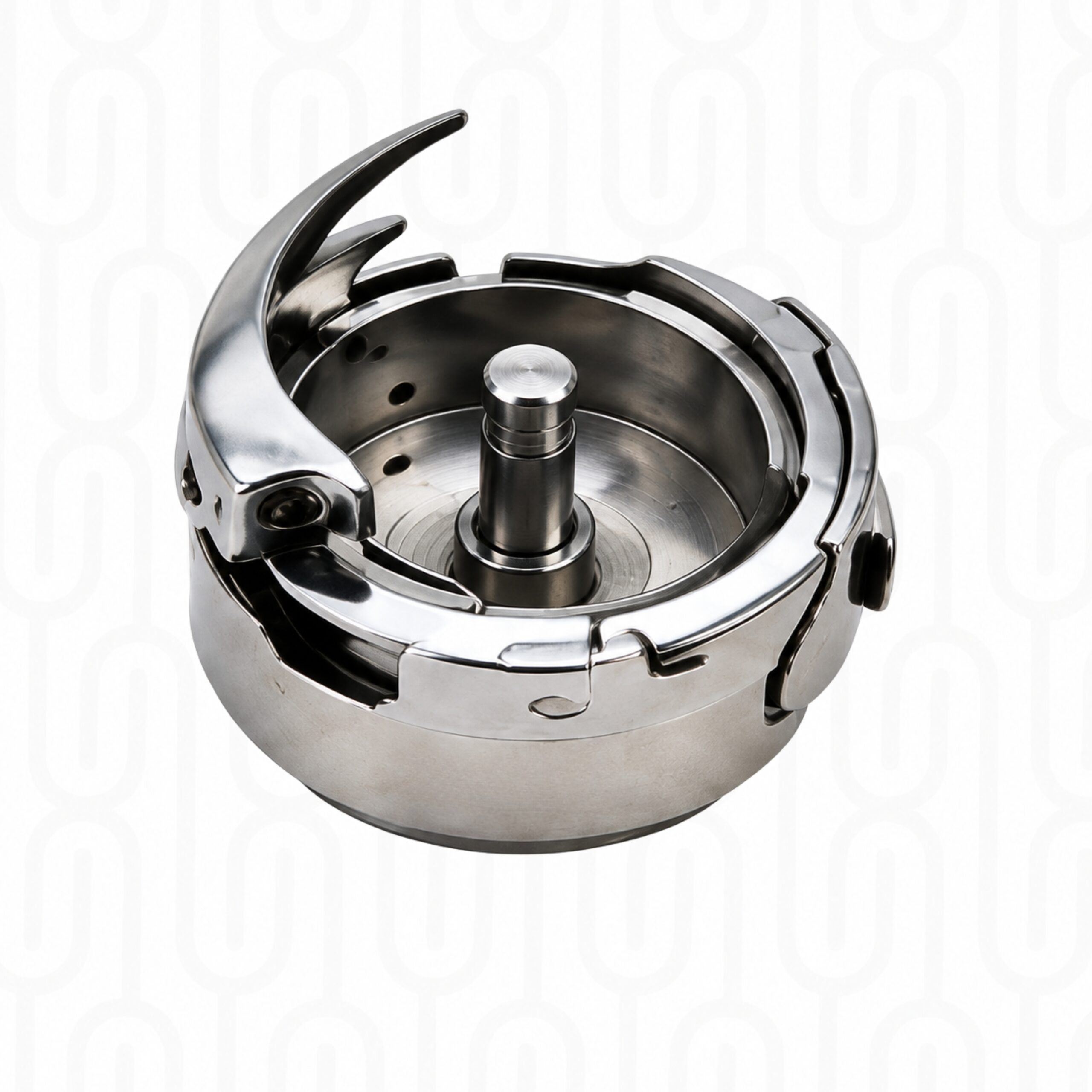

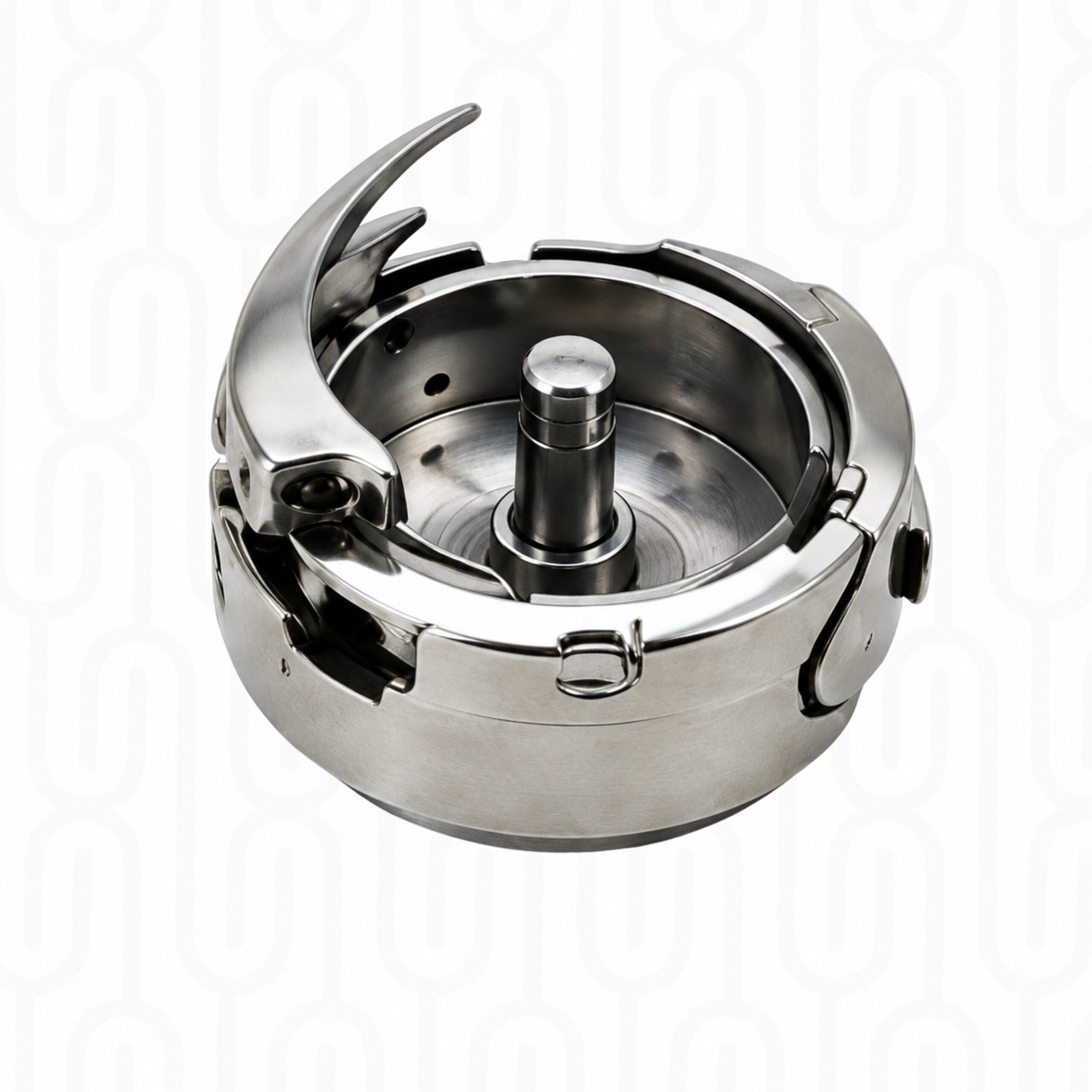

7.94B Rotary Hook for Direct-Drive Lockstitch Machines
The 7.94B Rotary Hook for Direct-Drive Lockstitch Machines is an industrial sewing-machine rotary-hook component intended for compatible equipment. It is suitable for replacement or servicing where the existing component matches the required machine configuration. Confirm compatibility before ordering.
7.94B Rotary Hook for Direct-Drive Lockstitch Machines
The 7.94B rotary hook is intended for compatible direct-drive industrial lockstitch sewing machines. It works with the needle thread, bobbin and bobbin case to form each stitch and must remain correctly fitted, lubricated and timed.
Purpose and Benefits
Why This Machine Part Matters
The rotary hook is central to the lockstitch-forming process. Its hook point catches the upper-thread loop as the needle rises, carries the thread around the bobbin assembly and enables the upper and lower threads to interlock.
Needle-Thread Capture
The hook point catches the upper-thread loop during the stitch-forming cycle.
Lockstitch Formation
Carries the upper thread around the bobbin assembly so it can interlock with the lower thread.
Smooth Rotary Action
Correct installation and lubrication support smooth movement during continuous sewing.
Serviceable Mechanism
Replacing a worn or damaged hook can help restore reliable thread handling and stitch formation.
Replacement and Compatibility Guidance
When to Replace and What to Consider
Signs of Wear
A worn hook point, burrs, scoring, rough movement, unusual noise, thread damage or recurring skipped stitches may require inspection.
Confirm the 7.94B Type
The 7.94B must not be assumed interchangeable with 7.94A, ATR, DLC or other similar-looking rotary-hook variants.
Confirm Compatibility
Confirm the complete machine model, direct-drive configuration and matching bobbin and bobbin-case system.
Professional Timing
Installation, lubrication, hook-to-needle clearance and timing should be checked by a qualified sewing-machine technician.
Compatibility and timing must be confirmed before use to ensure the 7.94B hook matches the direct-drive machine and bobbin system.
Parts Enquiry and Ordering
Send Us the Right Information
To help our parts team identify the correct 7.94B rotary hook, provide the following information when requesting a quote.
Machine Details
Provide the machine brand, complete model, subclass and direct-drive configuration.
Existing Hook
Send clear photographs of the original rotary hook and all visible markings.
Bobbin System
Include photographs and markings from the matching bobbin and bobbin case.
Required Quantity
Let us know how many replacement rotary hooks are required.
| Product Type | Industrial Rotary Hook |
|---|---|
| Catalogue Designation | 7.94B |
| Machine Compatibility | Direct Drive Lockstitch |
| Application | Direct-drive lockstitch stitch formation |
